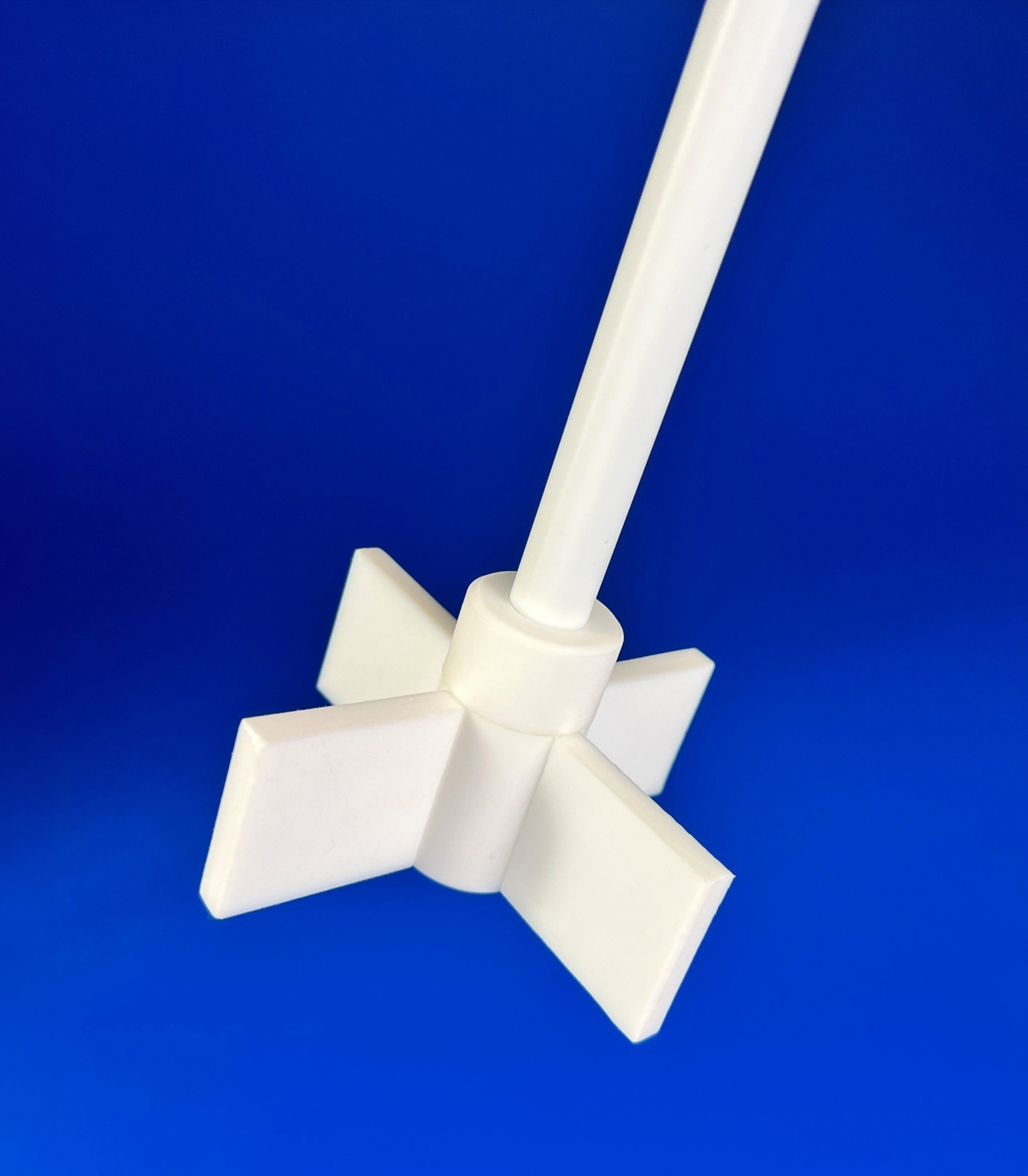

Radial Flow Impeller Stirrer, 4- 90˚ Blades, 8mm – 16mm Diameter PTFE Shaft
- Radial Flow Impeller Stirrer
- 4- 90˚ Blades
- 8mm-16mm Diameter Sheathed PTFE Shaft
Quantity discounts are available! Please call 732-356-1553 or submit a quote for larger quantities.
| SKU | Shaft Ø | Blade Ø | Length | Custom Lengths | SS Core Ø | Price | Cart |
|---|---|---|---|---|---|---|---|
| SM-4572-06 | 6mm | 65mm | 300mm | 5mm | $297.46 | ||
| SM-4572-07 | 8mm | 50mm | 500mm | 5mm | $323.37 | ||
| SM-4572-09 | 8mm | 75mm | 500mm | 5mm | $323.37 | ||
| SM-4572-11 | 10mm | 50mm | 500mm | 6.35mm | $323.37 | ||
| SM-4572-10 | 10mm | 75mm | 500mm | 6.35mm | $323.37 | ||
| SM-4572-13 | 10mm | 75mm | 580mm | 6.35mm | $355.81 | ||
| SM-4572-15 | 10mm | 90mm | 650mm | 6.35mm | $409.89 | ||
| SM-4572-17 | 12mm | 50mm | 19.60 | 16.00"-19.60" | 6.35mm | $496.41 | |
| SM-4572-19 | 12mm | 75mm | 25.50 | 19.70"-25.50" | 6.35mm | $518.04 | |
| SM-4572-21 | 12mm | 90mm | 29.50" | 25.55"-29.50" | 6.35mm | $572.11 | |
| SM-4572-23 | 16mm | 75mm | 25.55" | 21.65"-25.55" | 25mm | $582.93 | |
| SM-4572-25 | 16mm | 90mm | 25.55" | 21.65"-25.55" | 38mm | $626.19 | |
| SM-4572-27 | 16mm | 100mm | Custom Length | 25.55"-29.50" | 38mm | $669.45 |
PTFE Jacketed Stirrer Shafts with a permanently attached bottom 90° Four blade Radial Flow Impellar. Impellar sizes range from 50mm to 100mm diameter by 20mm to 45mm High. For multiple blades configrations place a SM-670 mid shaft. Special lengths and agitator diameters are available upon request. Call us 9-6 M-F EST if you want to speak with a technician for consultation.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Shaft Ø | 10mm, 12mm, 16mm, 6mm, 8mm |
| Blade Ø | 100mm, 50mm, 65mm, 75mm, 90mm |
| Length | 300mm, 500mm, 580mm, 650mm, 19.60, 25.50, 25.55", 29.50", Custom Length |
| Custom Lengths | 16.00"-19.60", 19.70"-25.50", 21.65"-25.55", 25.55"-29.50" |
| SS Core Ø | 25mm, 38mm, 5mm, 6.35mm |
