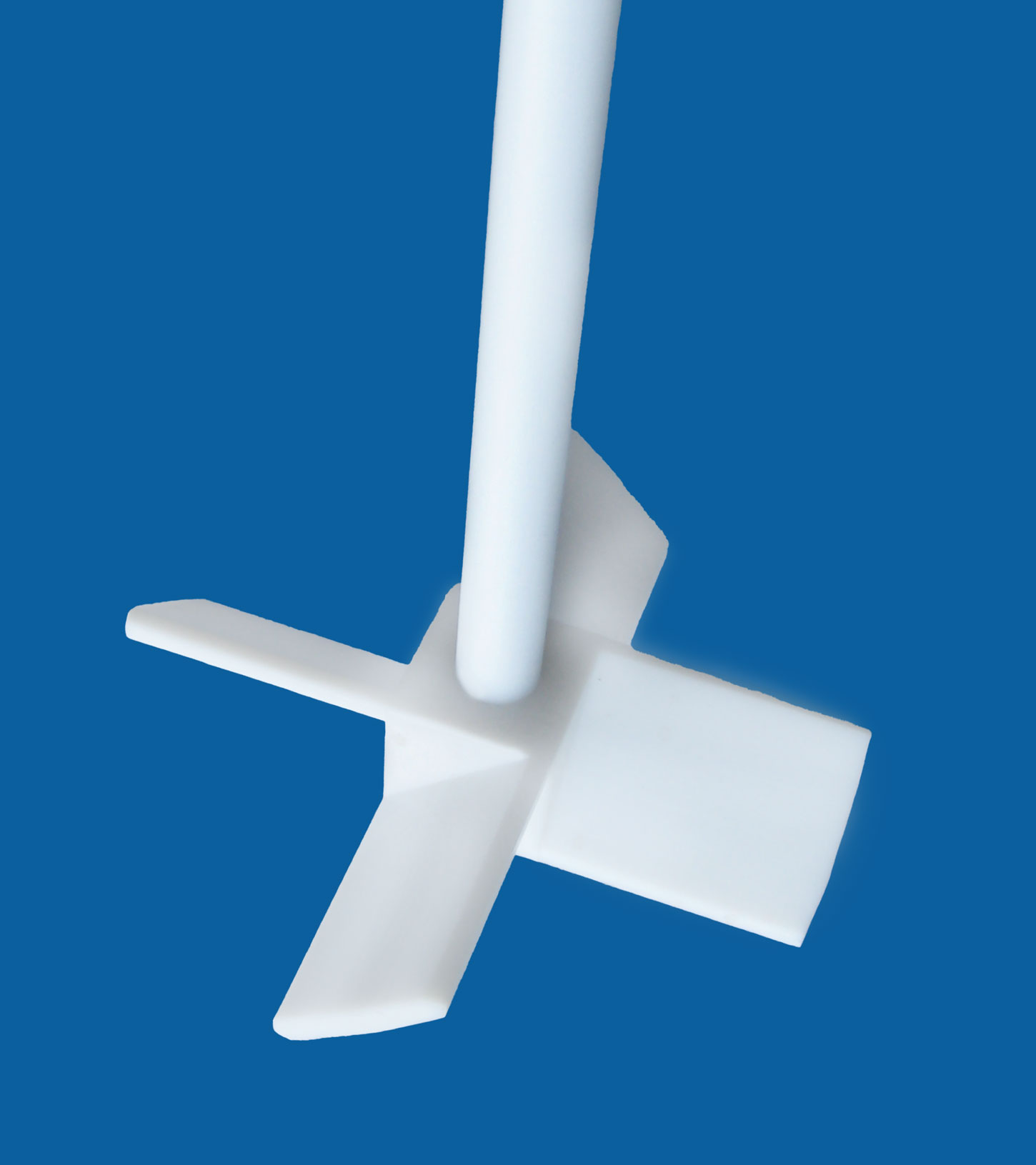

Axial flow Propeller Stirrer Shaft, 8mm – 16mm PTFE Jacketed Shaft
- 8mm to 16mm Stirrer Shafts
- 50mm to 120mm Ø Agitator
- Axial flow – Low Shear
- One Piece Construction
- Four 45° Blades
- Custom Length Shafts Available
- Stainless Steel Shaft Core
Quantity discounts are available! Please call 732-356-1553 or submit a quote for larger quantities.
| SKU | Shaft Ø | Blade Ø | Length | Custom Lengths | SS Core Ø | Price | Cart |
|---|---|---|---|---|---|---|---|
| SM-4378-07 | 8mm | 50mm | 500mm | 15.75"-19.65" | 5mm | $174.00 | |
| SM-4378-22-EX | 9.5mm | 60mm | 550mm | 15.75"-21.60" | 6.35mm | $199.88 | |
| SM-4378-26 | 9.5mm | 60mm | 650mm | 21.65"-25.55" | 6.35mm | $214.31 | |
| SM-4378-28 | 9.5mm | 60mm | 750mm | 25.55"-29.50" | 6.35mm | $232.01 | |
| SM-4378-29 | 10mm | 60mm | 750mm | 21.65"-29.50" | 6.35mm | $232.01 | |
| SM-4378-30-50 | 10mm | 50mm | 650mm | 21.65"-25.55" | 6.35mm | $232.56 | |
| SM-4378-32 | 10mm | 70mm | 650mm | 21.65"-25.55" | 6.35mm | $236.44 | |
| SM-4378-34 | 10mm | 70mm | 750mm | 25.55"-29.50" | 6.35mm | $239.27 | |
| SM-4378-40 | 12mm | 80mm | 650mm | 21.65"-25.55" | 8mm | $295.88 | |
| SM-4378-42 | 12mm | 80mm | 750mm | 25.55"-29.50" | 8mm | $299.47 | |
| SM-4378-44 | 12mm | 80mm | 1000mm | 29.50"-39.40" | 8mm | $388.72 | |
| SM-4378-52 | 16mm | 80mm | 750mm | 25.55"-29.50" | 10mm | $385.62 | |
| SM-4378-54 | 16mm | 100mm | 750mm | 25.55"-29.50" | 10mm | $397.63 | |
| SM-4378-56 | 16mm | 100mm | 1000mm | 29.50"-39.30" | 10mm | $468.72 | |
| SM-4378-58 | 16mm | 120mm | Custom Length | 29.50"-39.30" | 10mm | $491.59 |
Axial Flow Agitator on PTFE Jacketed Stirrer shafts with an all PTFE Agitator permanently attached at the base. Shaft has a SS Solid Core for stability with an exposed top section for secure attachment to your motor. Special lengths and agitator diameters are available upon request. Call us 9-6 M-F EST if you want to speak with a technician for consultation.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Shaft Ø | 10mm, 12mm, 16mm, 8mm, 9.5mm |
| Blade Ø | 100mm, 120mm, 50mm, 60mm, 70mm, 80mm |
| Length | 1000mm, 500mm, 550mm, 650mm, 750mm, Custom Length |
| Custom Lengths | 15.75"-19.65", 15.75"-21.60", 21.65"-25.55", 21.65"-29.50", 25.55"-29.50", 29.50"-39.30", 29.50"-39.40" |
| SS Core Ø | 10mm, 5mm, 6.35mm, 8mm |
